Space Requirements and Specs

Complete System Specifications for ScanMax

Space Requirements

Optimize Your Space & Reduce Costs

Understanding dimensional specifications is crucial for planning equipment space and optimizing building and land costs. ScanMax is designed to fit your needs, with configurations available in two standard bay lengths: 60' and 100', ensuring your fleet trucks are accommodated seamlessly.

Below, you'll find diagrams showcasing both bay configurations and a representative Pump Room setup for ScanMax.

System Specifications

To ensure optimal performance and seamless integration, the ScanMax system is designed with precise specifications across all components.

Explore the details below to see how ScanMax is built to elevate your wash operations.

60 FOOT BAY LENGTH CONFIGURATION

Illustration of a fire station fire truck storage and equipment room with two red fire trucks and various stored equipment.

    • Sprinter Vans.

    • Work Truck (plumbing, HVAC, ladder trucks, tow trucks, etc.).

    • Ambulance.

    • Mid-size in town moving trucks.

    • Shuttle Buses.

    • Mid-size moving vans.

    • Pumper Truck.

    • Down to standard sized vehicles

Digital illustration of a white cargo van with tinted windows and black trim, viewed from the side.
Illustration of a white cargo van with black and gray details, featuring a large side panel, tinted windows, and black tires with silver hubcaps.
Illustration of a white cargo van with gray and black accents, black tires, and a large windshield.

100 FOOT BAY LENGTH CONFIGURATION

A digital illustration showing an industrial facility with two semi-trucks inside. The trucks are positioned parallel to each other, parked in a covered area. Equipment, pipes, tanks, and machinery are visible around the trucks within the facility.

      • Tractor Trailer Cabs.

      • Tractor Trailers.

      • Buses.

      • Sprinter Vans.

      • Large in town Delivery Trucks.

      • Ambulance.

      • Pumper Truck.

      • Large Moving Vans.

      • Shuttle Buses.

      • Large Moving Vans HVAC, ladder trucks, tow trucks, etc.).

      • Down to standard sized vehicles.

A white cargo van with black wheels and tinted windows, seen from the side.
A white cargo van with tinted front windows, black side mirrors, and black wheel arches parked on a plain background.
A white cargo van with black wheels and tinted windows

System Specifications

Section of a technical document displaying air requirements, specifying 5 CFM at 90 PSI of filtered dry air for chemical aeration.

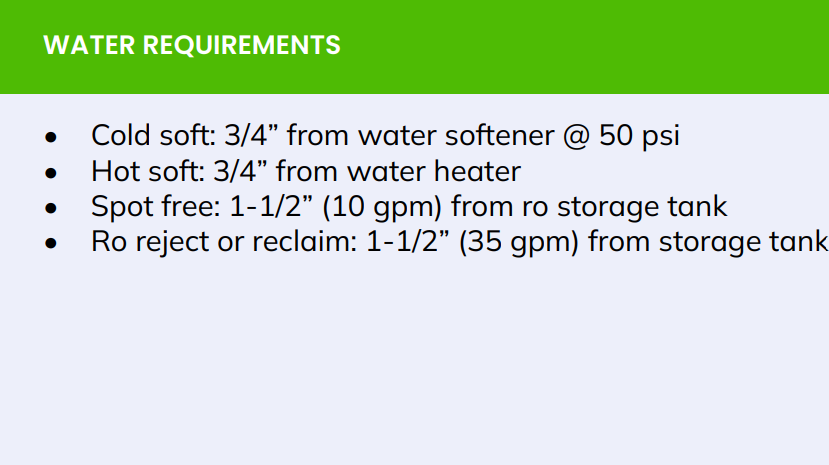

Water requirements for plumbing, including soft water, hot water, spot free, and reject/reclaim specifications.
A table listing building requirements for a bay, including overhead rails, bay height, width, length, and tractor trailer length, with specific measurements and recommendations.
List of electrical and service requirements including voltage, frequency, phase, and equipment amperage ratings.
A document listing dimensions, including vehicle height, width, carriage size, weight, and pump stand measurements.
Table comparing pumpstand specifications, including dimensions and pressure ratings for main and secondary pump stands, low and high pressure pumps.
Table with specifications for electric air equipment, including a carriage, chemical pump stand, high-pressure pump stand, and filtered dry air for chemical aeration.
Chart with green header labeled 'CARRIAGE' and blue sections showing assembled dimensions of 180 inches wide and 189 inches high, and weight of 800 pounds.
Water line connection diagram with sections labeled Cold Soft, Hot Soft optional, Spot Free, and RO Reject or Reclaim optional, showing pipe sizes and connection sources.
Table displaying minimum size specifications for a bay, including height 16'5", width 17', length 50' with a 3'-5' adjustment for dryers, and total length 100' with dryer adjustment.
